Unpowered fan
|
|
||||||||||||||||||||

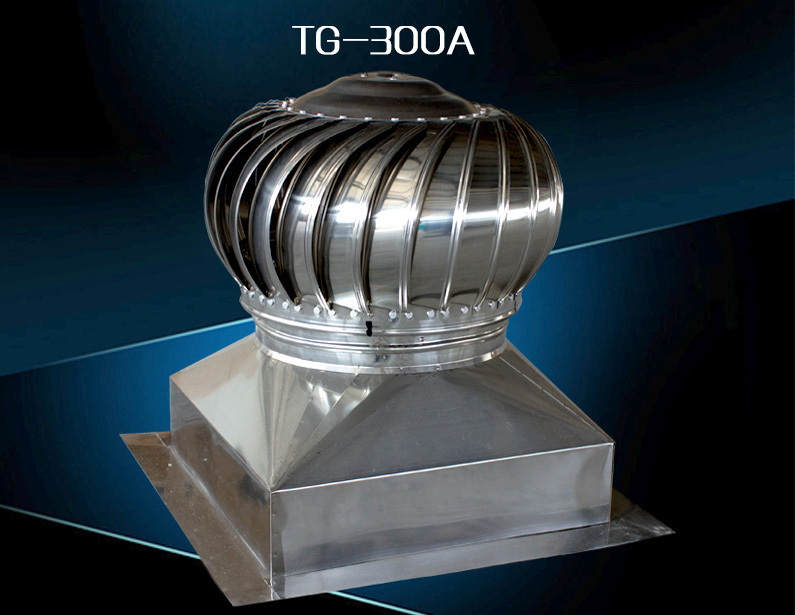

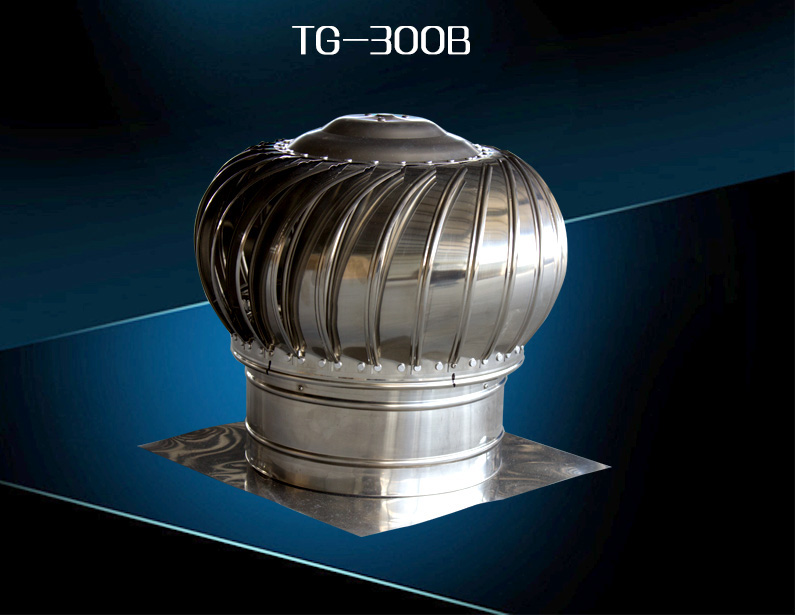

| TG-300 are usually used in the houses,the ventilating pipes and the small buildings.The turbine is the ball part and diameter is 420mm,and the throat diameter is 300mm(12inch).Many materials are available,stainless steel,fluorocarbon coated aluminium alloy,aluminium,galvanized sheet and so on.Air discharge is about 350-1200CBM/H.Base plates sizes can be designed according to your demands. | |||||||||||||||||||||
| TG-300 type exhaust fan air volume | |||||||||||||||||||||
| wind speed(km) | 3.2 | 6.4 | 8 | 9.6 | 12.8 | 16 | |||||||||||||||
| temperature difference | 5 | 10 | 15 | 5 | 10 | 15 | 5 | 10 | 15 | 5 | 10 | 15 | 5 | 10 | 15 | 5 | 10 | 15 | |||
| model | ball dia | throat dia | height | air discharge per hour(m³) | |||||||||||||||||
| (MM) | (MM) | (M) | |||||||||||||||||||
| TG300 | 420 | 300 | 3 | 298 | 362 | 405 | 453 | 501 | 560 | 546 | 611 | 654 | 627 | 691 | 735 | 808 | 873 | 916 | 993 | 1057 | 1100 |
| 6 | 350 | 433 | 495 | 506 | 589 | 651 | 599 | 682 | 744 | 680 | 763 | 824 | 861 | 945 | 1006 | 1046 | 1129 | 1173 | |||
| 9 | 396 | 495 | 573 | 552 | 651 | 728 | 644 | 744 | 821 | 725 | 724 | 902 | 907 | 1006 | 1084 | 1092 | 1191 | 1268 | |||
| 12 | 433 | 548 | 635 | 589 | 703 | 793 | 682 | 796 | 886 | 763 | 878 | 967 | 945 | 1059 | 1149 | 1129 | 1244 | 1333 | |||
