Unpowered fan
|

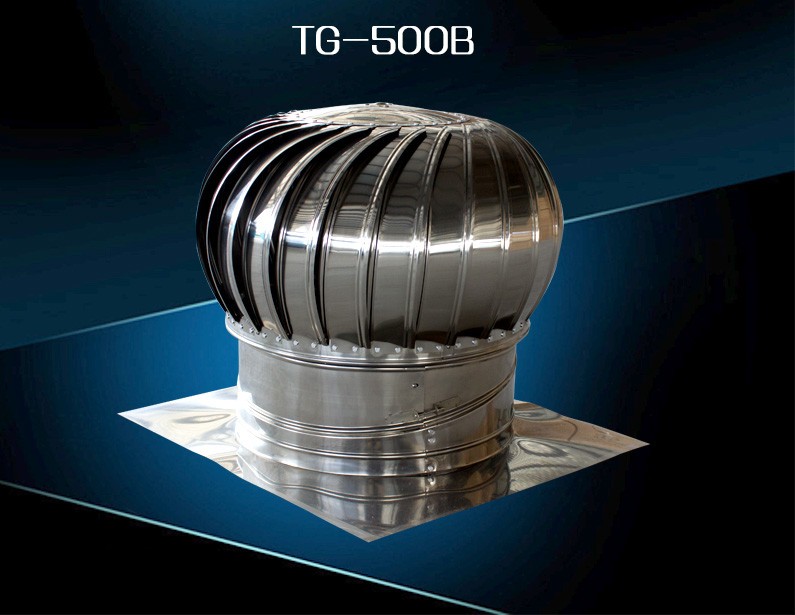

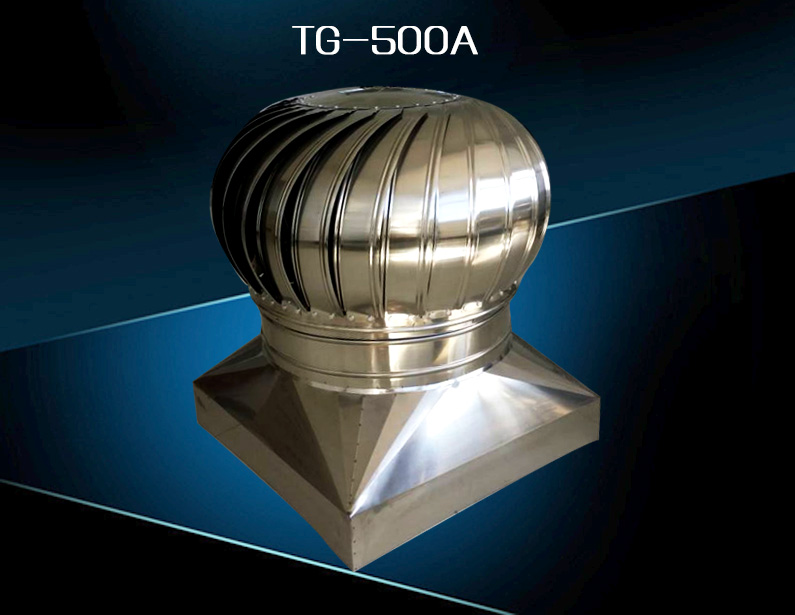

TG-500 are usually used in the houses,the ventilating pipes and the small buildings.The turbine is the ball part and diameter is 620mm,and the throat diameter is 500mm(20inch).Many materials are available,stainless steel,fluorocarbon coated aluminium alloy,aluminium,galvanized sheet and so on.Air discharge is about 950-4000CBM/H.Base plates sizes can be designed according to your demands. |
|||||||||||||||||||||
| TG-500 type exhaust fan air volume | |||||||||||||||||||||
| wind speed(km) | 3.2 | 6.4 | 8 | 9.6 | 12.8 | 16 | |||||||||||||||
| temperature difference | 5 | 10 | 15 | 5 | 10 | 15 | 5 | 10 | 15 | 5 | 10 | 15 | 5 | 10 | 15 | 5 | 10 | 15 | |||
| model | ball dia | throat dia | height | air discharge per hour(m³) | |||||||||||||||||
| (MM) | (MM) | (M) | |||||||||||||||||||
| TG500 | 620 | 500 | 3 | 824 | 1003 | 1121 | 1254 | 1434 | 1552 | 1511 | 1691 | 1810 | 1736 | 1915 | 2034 | 2238 | 2418 | 2537 | 2751 | 2930 | 3047 |
| 6 | 970 | 1200 | 1372 | 1402 | 1631 | 1803 | 1658 | 1889 | 2059 | 1882 | 2113 | 2283 | 2385 | 2616 | 2785 | 2899 | 3126 | 3298 | |||
| 9 | 1096 | 1372 | 1587 | 1528 | 1803 | 2016 | 1784 | 2059 | 2274 | 2008 | 2283 | 2499 | 2510 | 2785 | 3001 | 3023 | 3298 | 3213 | |||
| 12 | 1200 | 1518 | 1758 | 1631 | 1948 | 2197 | 1889 | 2205 | 2454 | 2113 | 2430 | 2678 | 2616 | 2933 | 3181 | 3126 | 3444 | 3692 | |||
