ridge ventilation

Note: n is the number of the length of the length of the skylight hole 3000, 4000, and 6000, in the name of the skylight in the hole length marked 30n, 40n and 60N, determined by the engineering design.

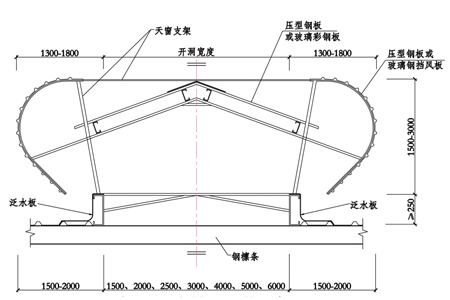

The ARC open type(TG3/4A)
besides the merits of mansard ventilation,the structure is more reasonable,the rainy board can prevent the raining leak,apply to the big plant and public building.

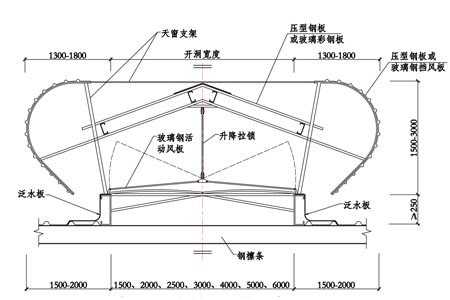

The ARC open-close type(TG3/4B)

besides the merits of mansard ventilation,the structure is more reasonable,it controls the temperature and air discharge by opening and closing the value plate,apply to the high rain frequency regions.
drawing model code hole width
(mm)
 hole length
(mm)
 ventilation height
(mm)

 ventilation area per meter
(㎡)

 weight of adding per meter
(Kg)
 motor power
(Kw/m)


3 type ventilation skylight
(open and close)

 TC3B-1530n(1540n、1560n) 1500 3000×n、4000×n
(used for profiled steel plate or cast in place concrete roof)

6000×n
(used for prestressed reinforced concrete roof slab)
 1500 1.20  120 0.12
TC3B-2030n(2040n、2060n) 2000 1800 1.60  160 0.12
TC3B-2530n(2540n、2560n) 2050 2000 2.00  200 0.12
TC3B-3030n(3040n、3060n) 3000 2500 2.40  245 0.12
TC3B-4030n(4040n、4060n) 4000 3000 3.20  300 0.18
TC3B-4530n(4540n、4560n) 4500 3300 3.60  350 0.18
TC3B-5030n(5040n、5060n) 5000 3500 4.00  390 0.18
TC3B-6030n(6040n、6060n) 6000 4000 4.80  480 0.18


Sunroof model Sunroof code hole width
(mm)
 hole length
(mm)
 ventilation height
(mm)

 ventilation area per meter
(㎡)

 weight of adding per meter
(Kg)
 motor power
(Kw/m)

4 type ventilation skylight
(open type)

 TC4B-1530n(1540n、1560n) 1500 3000×n、4000×n
(For profiled steel plate or cast in place concrete roof)

6000×n
(used for prestressed reinforced concrete roof slab)
 1500 1.35  100 (no motor)
TC4B-2030n(2040n、2060n) 2000 1800 1.80  140
TC4B-2530n(2540n、2560n) 2500 2000 2.25  180
TC4B-3030n(3040n、3060n) 3000 2500 2.70  220
TC4B-4030n(4040n、4060n) 4000 3000 3.60  260
TC4B-4530n(4540n、4560n) 4500 3300 4.05  290
TC4B-5030n(5040n、5060n) 5000 3500 4.50  330
TC4B-6030n(6040n、6060n) 6000 4000 5.40  380

Sunroof model Sunroof code hole width
(mm)
 hole length
(mm)
 ventilation height
(mm)

 ventilation area per meter
(㎡)

 weight of adding per meter
(Kg)
 motor power
(Kw/m)
5 type ventilation skylight
(open and close)

 TC5B-1530n(1540n、1560n) 1500 3000×n、4000×n
(For profiled steel plate or cast in place concrete roof)

6000×n
(used for prestressed reinforced concrete roof slab)
 1500 1.35  120 (no motor)
TC5B-2030n(2040n、2060n) 2000 1800 1.80  160
TC5B-2530n(2540n、2560n) 2500 2150 2.25  200
TC5B-3030n(3040n、3060n) 3000 2500 2.70  245
TC5B-3530n(3540n、3560n) 3500 2850 3.15  270
TC5B-4030n(4040n、4060n)
 4000 3200 3.60  300
TC5B-4530n(4540n、4560n) 4500 3600 4.05  345
TC5B-5030n(5040n、5060n) 5000 3850 4.50  390
TC5B-6030n(6040n、6060n)
 6000 4450 5.40  480

Sunroof model Sunroof code hole width
(mm)
 hole length
(mm)
 ventilation height
(mm)

 ventilation area per meter
(㎡)

 weight of adding per meter
(Kg)
 motor power
(Kw/m)
5 type ventilation skylight
(open type)

 TC5B-1530n(1540n、1560n)
 1500 3000×n、4000×n

(For profiled steel plate or cast in place concrete roof)


6000×n
(used for prestressed reinforced concrete roof slab)
 1500 1.35  120 (no motor)
TC5B-2030n(2040n、2060n)
 2000 1800 1.80  160
TC5B-2530n(2540n、2560n)
 2500 2150 2.25  200
TC5B-3030n(3040n、3060n)
 3000 2500 2.70  245
TC5B-3530n(3540n、3560n)
 3500 2850 3.15  270
TC4B-4030n(4040n、4060n)
 4000 3200 3.60  300
TC4B-4530n(4540n、4560n)
 4500 3600 4.05  345
TC4B-5030n(5040n、5060n) 5000 3850 4.50  390
TC4B-6030n(6040n、6060n)
 6000 4450 5.40  480

Sunroof model Sunroof code hole width
(mm)
 hole length
(mm)
 ventilation height
(mm)

 ventilation area per meter
(㎡)

 weight of adding per meter
(Kg)
 motor power
(Kw/m)
6 type ventilation skylight
(open type)

 TC6A-1530n(1540n、1560n)
 1500 3000×n、4000×n
(For profiled steel plate or cast in place concrete roof)

6000×n
(used for prestressed reinforced concrete roof slab)
 1500 1.35  120 (no motor)
TC6A-2030n(2040n、2060n)
 2000 1800 1.80  160
TC6A-2530n(2540n、2560n)
 2500 2150 2.25  200
TC6A-3030n(3040n、3060n)
 3000 2500 2.70  245
TC6A-3530n(3540n、3560n)
 3500 2850 3.15  270
TC6A-4030n(4040n、4060n)
 4000 3200 3.60  300
TC6A-4530n(4540n、4560n) 4500 3600 4.05  345
TC6A-5030n(5040n、5060n) 5000 3850 4.50  390
TC5B-6030n(6040n、6060n)
 6000 4450 5.40  480

Sunroof model Sunroof code hole width
(mm)
 hole length
(mm)
 ventilation height
(mm)

 ventilation area per meter
(㎡)

 weight of adding per meter
(Kg)
 motor power
(Kw/m)
6 type ventilation skylight
(open and close)

 TC6A-1530n(1540n、1560n)
 1500 3000×n、4000×n
(For profiled steel plate or cast in place concrete roof)

6000×n
(used for prestressed reinforced concrete roof slab)
 1500 1.20  120 0.12
TC6A-2030n(2040n、2060n)
 2000 1800 1.60  160 0.12
TC6A-2530n(2540n、2560n)
 2500 2150 2.00  200 0.12
TC6A-3030n(3040n、3060n)
 3000 2500 2.40  245 0.12
TC6A-3530n(3540n、3560n)
 3500 2850 2.80  270 0.18
TC6A-4030n(4040n、4060n)
 4000 3200 3.20  300 0.18
TC6A-4530n(4540n、4560n) 4500 3600 3.60  345 0.25
TC6A-5030n(5040n、5060n) 5000 3850 4.00  390 0.25
TC5B-6030n(6040n、6060n)
 6000 4450 4.80  480 0.25

Sunroof model Sunroof codehole width
(mm)
hole width
(mm)
 hole length
(mm)
 ventilation height
(mm)

 ventilation area per meter
(㎡)

 weight of adding per meter
(Kg)
 motor power
(Kw/m)
7 type ventilation skylight
(open additional axial fan)

 TC7A-1530n(1540n、1560n)
 1500 3000×n、4000×n
(For profiled steel plate or cast in place concrete roof)


6000×n

(used for prestressed reinforced concrete roof slab)
 1500 1.35  130 0.05
(for axial fans)
TC7A-2030n(2040n、2060n)
 2000 1800 1.80  170
TC7A-2530n(2540n、2560n)
 2500 2150 2.25  210
TC7A-3030n(3040n、3060n)
 3000 2500 2.70  255
TC7A-3530n(3540n、3560n)
 3500 2850 3.15  280
TC7A-4030n(4040n、4060n)
 4000 3200 3.60  310
TC7A-4530n(4540n、4560n) 4500 3600 4.05  355
TC7A-5030n(5040n、5060n) 5000 3850 4.50  400
TC7A
-6030n(6040n、6060n)
 6000 4450 5.40  490

Sunroof model Sunroof code hole width
(mm)
 		hole length
(mm)
 		ventilation height
(mm)
ventilation area per meter
(㎡)

 		weight of adding per meter
(Kg)
 		motor power
(Kw/m)

7 type ventilation

 skylight

(open and close

additional axial fan)


TC7B-1530n(1540n、1560n) 1500 3000×n、4000×n
(For profiled steel plate or cast in place concrete roof)

6000×n
(used for prestressed reinforced concrete roof slab)
 		1500 1.20  130 0.17
TC7B-2030n(2040n、2060n)
 		2000 1800 1.60  170 0.17
TC7B-2530n(2540n、2560n)
 		2500 2150 2.00  210 0.17
TC7B-3030n(3040n、3060n)
 		3000 2500 2.40  255 0.17
TC7B-3530n(3540n、3560n)
 		3500 2850 2.80  280 0.23
TC7B-4030n(4040n、4060n)
 		4000 3200 3.20  310 0.23
TC7B-4530n(4540n、4560n) 4500 3600 3.60  355 0.30
TC7B-5030n(5040n、5060n) 5000 3850 4.00  400 0.30
TC7B
-6030n(6040n、6060n)
 		6000 4450 4.80  490 0.30
